caution

This provider is no longer functional as of Vertec version 6.7, as authentication has changed in Vertec.

Vertec 6.7​

This AddressProvider no longer works as of version 6.7.
As an alternative, the HttpProvider of the AddressService can be used.

Most important distinguishing feature: Authentication previously went through the entered user data. With the HttpProvider, a service account must be created in Vertec, and the API Token of this service account is required.

The following configuration shows the access to Vertec; the following must be adapted:

  • <https://KUNDE.vertec-mobile.com/xml> with the Vertec URL
  • Bearer ... with Bearer [API TOKEN of the service account]
  • Note: %{searchTerm}% was %{0}% in the old configuration. When taking over the SQL query or OCL from the existing configuration, this must be adapted.
 <!-- Vertec via AddressService -->
  <!-- Vertec address provider - neue Konfiguration ab Vertec 6.7   -->
  <AddressProvider id="E10A8313-A92D-4CB2-A12B-9AEB58F39207" order="1" active="true">
    <!-- Vertec, Server -->
    <AddressProvider id="09C886F1-4B5A-4372-8CB4-4AA6D2F7A47B" Title="Vertec">
      <!-- Vertec, Applikation -->
      <Icon>iVBORw0KGgoAAAANSUhEUgAAABAAAAAQCAIAAACQkWg2AAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAJcEhZcwAADsMAAA7DAcdvqGQAAAIASURBVDhPfVLbahNBGJ6d2c02BxsTU2qibSqNJ4hiqIiIXgleeOuFeOU7+Bo+iFfeV7Gl0BuVGiEgZouSDbHbbEqSTTbLHmfGfw8EVsWPn53Zb77/OCO83kchBMT81rT3itMVhHhE/Rs4WZf4nzgE9hgC8ynyaMf1AyegDnz9wA1oIkFwyryA8iiWoJ61oZ4QHFOnghAR4JcjLwjeHrSnlk0wfvH4LnBv9o8YQ+K30/eRA4fqnfEOo+LGevn+7euTmWk6LkQUCd6srpXOFdpKv6MOSfPZB90C29Nmn4+P7ym/5qWc1GxsKn3tU7cvSwTKW5iLZmND1UaqPsUSRqERlCFbsiRmRHyjXoOMPW1EcJhaIvj7YGRatuv5AhJSU+Kc52Xp8noloLR3OoZigGScF3Mr0LE+NUWcdqCMV0uFUrEADQyNBbQLJIxou1axXfdkYuKYWoIydrG8CuRoYkDpyfA4v3Ot/nMwjJmUA2TPyRnYzBd2PHXbC3a2L104v3rY+SGLIjApB+hyZtmwyWVliGc6Xq1cePqw9bGjDA0rnkHotIRESHdwpo+NW1e3nj+aCwJu3byi9E7efVGymURJnryMVgFxVnWMB64vqJq+Vsw36rV8Vj782t096kIx4fXHwr9fa8AopRyuLH5OskgiRYJUDzFEjEENTYP0DzVC6DclJP5kwEd/SAAAAABJRU5ErkJggg==</Icon>
      <SearchParameters>
        <SearchParameter Name="searchTerm" Label="Suchbegriff" Type="String" Length="100" Sort="1" />
      </SearchParameters>
      <Debug>true</Debug>
      <Configuration>
        <Step>
          <Request Method="Post" Url="<https://KUNDE.vertec-mobile.com/xml>">
            <!-- API Token  -->
            <Header Name="Authorization" Value="Bearer ..." />
            <!--
                Zum Testen:
                Mit Browser <https://KUNDE.vertec-mobile.com/xml/query> besuchen, dann das ganze "<Body>"-Element dort reinkopieren.
                «'%{0}%'» ersetzen mit Test-Suchbegriff.

                -->
            <Body><![CDATA[<Envelope>
                <Body>
                  <Query>
                    <Selection>
                      <ocl>Adresseintrag</ocl>
                      <sqlwhere>
                      aktiv = 1
                          and
                      (
                      (alias like '%{searchTerm}%') or (name like '%{searchTerm}%') or (nameA like '%{searchTerm}%') or (nameB like '%{searchTerm}%') or (standardadresse like '%{searchTerm}%') or (standardPLZ like '%{searchTerm}%') or (standardOrt like '%{searchTerm}%')
                        or
                      (firma in (select bold_id from adresseintrag where (name like '%{searchTerm}%') or (alias like '%{searchTerm}%') or (standardadresse like '%{searchTerm}%') or (standardPLZ like '%{searchTerm}%') or (standardOrt like '%{searchTerm}%')))
                      )
                  </sqlwhere>
                    </Selection>
                    <Resultdef>
                      <member>Personenkonto</member>
                      <member>Alias</member>
                      <member>LieferantenNr</member>
                      <member>Standardadresse</member>
                      <member>Stellung</member>
                      <member>Zusatz</member>
                      <member>StandardKanton</member>
                      <member>StandardTelefon</member>
                      <member>Bankverbindung</member>
                      <member>StandardMobile</member>
                      <member>Geburtsdatum</member>
                      <member>StandardHomepage</member>
                      <member>StandardLand</member>
                      <member>MWSTNR</member>
                      <member>StandardFax</member>
                      <member>Briefanrede</member>
                      <member>IsMale</member>
                      <member>Grussformel</member>
                      <expression>
                        <alias>Grussformel</alias>
                        <ocl>

                          if self.oclistypeof(Person) then self.oclastype(Person).grussformel
                          else
                            if self.oclistypeof(Kontakt) then
                              if self.oclastype(Kontakt).person->notempty then self.oclastype(Kontakt).person.grussformel
                              else self.oclastype(Kontakt).grussformel
                              endif
                            else
                              if self.oclistypeof(Firma) then self.oclastype(Firma).grussformel
                              else
                                if sprache.asstring = 'DE' then
                                  'Freundliche Grüsse'
                                else
                                  'Greetings,'
                                endif
                              endif
                            endif
                          endif


                       </ocl>
                      </expression>
                      <member>StandardEMail</member>
                      <member>Titel</member>
                      <member>StandardOrt</member>
                      <member>Name</member>
                      <member>Anrede</member>
                      <member>StandardPLZ</member>
                      <expression>
                        <alias>Sprache</alias>
                        <ocl>sprache.asstring</ocl>
                      </expression>
                      <member>KundenNR</member>
                      <expression>
                        <alias>firmenname</alias>
                        <ocl>
                          if self.oclistypeof(Firma) then self.oclastype(Firma).name
                          else
                            if self.oclistypeof(Kontakt) and self.oclastype(Kontakt).firma->notempty then self.oclastype(Kontakt).firma.name
                            else ''
                            endif
                          endif
                        </ocl>
                      </expression>
                      <expression>
                        <alias>kontaktname</alias>
                        <ocl>
                          if self.oclistypeof(Person) then self.oclastype(Person).name
                          else
                            if self.oclistypeof(Kontakt) then
                              if self.oclastype(Kontakt).person->notempty then self.oclastype(Kontakt).person.name
                              else self.oclastype(Kontakt).name
                              endif
                            else
                              <!-- Paar-Adressen -->
                              if self.oclistypeof(Paar)
                              then
                                if self.oclastype(Paar).personA.notNull and self.oclastype(Paar).personB.notNull then
                                  self.oclastype(Paar).personA.vorname + ' ' + self.oclastype(Paar).personA.name + ', ' + self.oclastype(Paar).personB.vorname + ' ' + self.oclastype(Paar).personB.name
                                else
                                  if self.oclastype(Paar).personA.notNull and self.oclastype(Paar).personB.isNull then
                                    self.oclastype(Paar).personA.vorname + ' ' + self.oclastype(Paar).personA.name + ', ' + self.oclastype(Paar).vornameB + ' ' + self.oclastype(Paar).nameB
                                  else
                                    if self.oclastype(Paar).personA.isNull and self.oclastype(Paar).personB.notNull then
                                      self.oclastype(Paar).vornameA + ' ' + self.oclastype(Paar).nameA + ', ' + self.oclastype(Paar).personB.vorname + ' ' + self.oclastype(Paar).personB.name
                                    else
                                      self.oclastype(Paar).vornameA + ' ' + self.oclastype(Paar).nameA  + ', ' + self.oclastype(Paar).vornameB + ' ' + self.oclastype(Paar).nameB

                                    endif

                                  endif
                                endif
                                else ''
                              endif

                            endif
                          endif
                        </ocl>
                      </expression>
                      <expression>
                        <alias>kontaktvorname</alias>
                        <ocl>
                          if self.oclistypeof(Person) then self.oclastype(Person).vorname
                          else
                            if self.oclistypeof(Kontakt) then
                              if self.oclastype(Kontakt).person->notempty then self.oclastype(Kontakt).person.vorname
                              else self.oclastype(Kontakt).vorname
                              endif
                            else ''
                            endif
                          endif
                        </ocl>
                      </expression>
                      <member>adresstext</member>
                      <expression>
                        <alias>Kuerzel</alias>
                        <ocl>
                          if self.oclistypeof(Kontakt) then self.oclastype(Kontakt).abteilung else '' endif
                        </ocl>
                      </expression>
                      <expression>
                        <alias>Abteilung</alias>
                        <ocl>
                          if self.oclistypeof(Kontakt) then zusatzfeldasstring('abteilung') else '' endif
                        </ocl>
                      </expression>
                      <!-- TestNameA: Zeigt, wie man bei Paaren auf den Nachnamen kommt (es gibt nämlich 2 Arten von Paaren) -->
                      <!--
                      <expression>
                        <alias>TestNameA</alias>
                        <ocl>
                          if self.oclistypeof(Paar)
                          then
                            if self.oclastype(Paar).personA.notNull
                            then self.oclastype(Paar).personA.name
                            else self.oclastype(Paar).nameA
                            endif
                          else 'Blub'
                          endif
                        </ocl>
                      </expression>
                      -->
                    </Resultdef>
                  </Query>
                </Body>
              </Envelope>
            ]]></Body>
          </Request>
          <Response>
            <Contacts XPath="/Envelope/Body/QueryResponse/Kontakt | /Envelope/Body/QueryResponse/Firma | /Envelope/Body/QueryResponse/Person | /Envelope/Body/QueryResponse/Paar ">
              <Mapping>
                <!-- Company -->
                <Map Source="standardOrt" Target="Company_City" />
                <Map Source="standardLand" Target="Company_Country" />
                <Map SourceValue="CH" Target="Company_CountryShortCode" />
                <Map Source="Abteilung" Target="Company_Department" />
                <Map Source="standardEMail" Target="Company_EmailCentral" />
                <Map Source="standardEMail" Target="Company_EmailDirect" />
                <Map Source="standardFax" Target="Company_FaxCentral" />
                <Map Source="standardFax" Target="Company_FaxDirect" />
                <Map Source="standardHomepage" Target="Company_Homepage" />
                <Map Source="firmenname" Target="Company_Name" />
                <Map Source="standardTelefon" Target="Company_PhoneCentral" />
                <Map Source="standardTelefon" Target="Company_PhoneDirect" />
                <!-- Company_PostOfficeBox ToDo -->
                <Map Source="standardAdresse" Target="Company_Street" />
                <Map Source="standardPLZ" Target="Company_ZipCode" />
                <!-- Person -->
                <Map Source="geburtsdatum" Target="Person_BirthDate" />
                <Map Source="standardLand" Target="Person_Country" />
                <Map SourceValue="CH" Target="Person_CountryShortCode" />
                <Map Source="standardOrt" Target="Person_City" />
                <Map Source="standardEMail" Target="Person_EmailDirect" />
                <Map Source="standardOrt" Target="Person_City" />
                <Map Source="standardFax" Target="Person_FaxDirect" />
                <Map Source="kontaktvorname" Target="Person_FirstName" />
                <Map Source="standardHomepage" Target="Person_Homepage" />
                <Map Source="kontaktname" Target="Person_LastName" />
                <Map Source="standardTelefon" Target="Person_PhoneDirect" />
                <Map Source="stellung" Target="Person_Position" />
                <!-- Person_PostOfficeBox ToDo -->
                <Map Source="standardAdresse" Target="Person_Street" />
                <Map Source="titel" Target="Person_Title" />
                <Map Source="standardPLZ" Target="Person_ZipCode" />
                <!-- Common -->
                <Map Source="ID" Target="AddressProviderData_Id" />
                <Map Source="anschrift" Target="AddressProviderData_Label_FormattedString" />
                <Map Source="briefanrede" Target="Person_Salutation" />
                <Map Source="Grussformel" Target="Person_Greeting" />
              </Mapping>
            </Contacts>
          </Response>
        </Step>
      </Configuration>
    </AddressProvider>
  </AddressProvider>

Older Vertec versions​

The address interface for Vertec can now also be addressed via token. For this purpose, the configuration must be changed as follows:

<!-- ↓ Alte Konfiguration ↓ -->
<BasicAuth>
  <Name></Name>
  <Password></Password>
</BasicAuth>

<!-- ↓ Neue Konfiguration ↓ -->
<BasicAuth>
  <Token></Token>
</BasicAuth>
note

IMPORTANT
The token tag must be empty. For more information regarding compatibility, see this link.

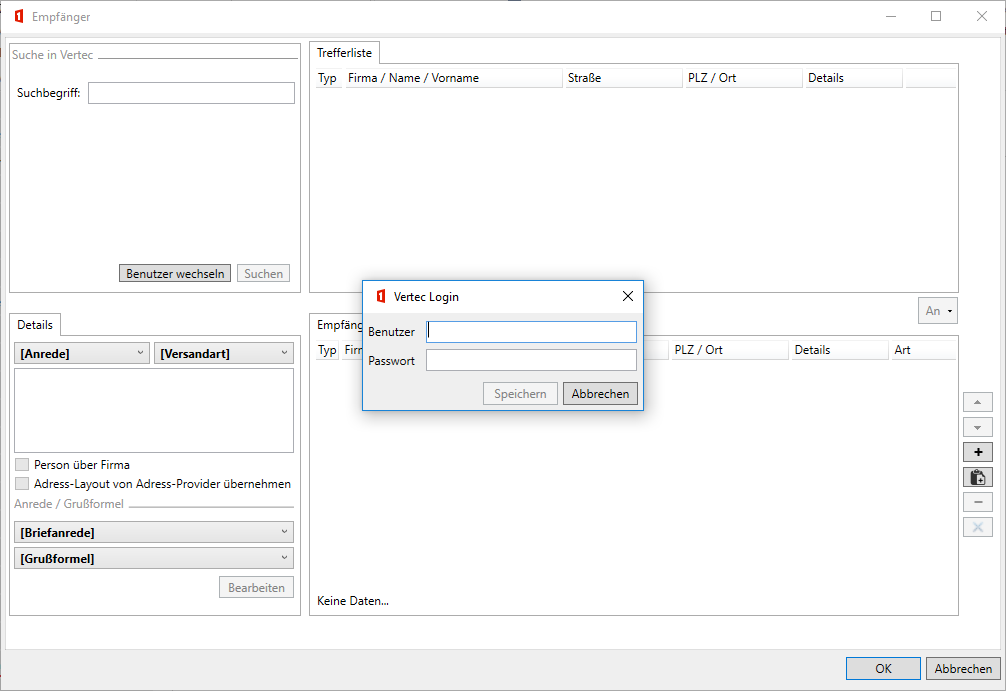

When the recipient dialog is called up for the first time, the login window opens in which you enter the Vertec login data. This is only required the first time; the login data is saved. There is also the possibility to change the user.

<!-- Vertec AddressProvider -->
<AddressProvider id="0861976E-318F-41A1-AE45-6D894A7E7292" order="12" active="false" hiddenIfNotAvailable="true">
  <Uri>http://{host}/xml</Uri>
  <Timeout>10000</Timeout>
  <ContactMapping>
    <ContactItemXPath>//Kontakt</ContactItemXPath>
    <ContactItemXPath>//Firma</ContactItemXPath>
    <ContactItemXPath>//Person</ContactItemXPath>
    <Namespaces />
    <ContactElement id="Company_City">Firma/standardOrt</ContactElement>
    <ContactElement id="Company_City">Kontakt/standardOrt</ContactElement>
    <ContactElement id="Company_Country">Firma/standardLand</ContactElement>
    <ContactElement id="Company_Country">Kontakt/standardLand</ContactElement>
    <!-- CountryShortCode is only mapped when Country also exists. Best practise: Map the country short code into Country and CountryShortCode. -->
    <ContactElement id="Company_CountryShortCode">Kontakt/standardLand</ContactElement>
    <ContactElement id="Company_Department">Kontakt/Abteilung</ContactElement>
    <ContactElement id="Company_EmailCentral">Firma/standardEMail</ContactElement>
    <ContactElement id="Company_EmailDirect">Kontakt/standardEMail</ContactElement>
    <ContactElement id="Company_FaxCentral">Firma/standardFax</ContactElement>
    <ContactElement id="Company_FaxDirect">Kontakt/standardFax</ContactElement>
    <ContactElement id="Company_Homepage">Firma/standardHomepage</ContactElement>
    <ContactElement id="Company_Homepage">Kontakt/standardHomepage</ContactElement>
    <ContactElement id="Company_Mobile"></ContactElement>
    <ContactElement id="Company_Name">firmenname</ContactElement>
    <ContactElement id="Company_PhoneCentral">Firma/standardTelefon</ContactElement>
    <ContactElement id="Company_PhoneDirect">Kontakt/standardTelefon</ContactElement>
    <ContactElement id="Company_PostOfficeBox" fReplace="Postfach,PostfachPostfach" fSubstringAfter="Postfach"></ContactElement>
    <ContactElement id="Company_PostOfficeBox" fReplace="Postfach,PostfachPostfach" fSubstringAfter="Postfach"></ContactElement>
    <ContactElement id="Company_PostOfficeBoxCity"></ContactElement>
    <ContactElement id="Company_Street">Firma/standardAdresse</ContactElement>
    <ContactElement id="Company_Street">Kontakt/standardAdresse</ContactElement>
    <ContactElement id="Company_Supplement"></ContactElement>
    <ContactElement id="Company_ZipCode">Firma/standardPLZ</ContactElement>
    <ContactElement id="Company_ZipCode">Kontakt/standardPLZ</ContactElement>
    <ContactElement id="Greeting">grussformel</ContactElement>
    <ContactElement id="ID">objid</ContactElement>
    <ContactElement id="Language"></ContactElement>
    <ContactElement id="Person_BirthDate">Kontakt/geburtsdatum</ContactElement>
    <ContactElement id="Person_BirthDate">Person/geburtsdatum</ContactElement>
    <ContactElement id="Person_Country">Person/standardLand</ContactElement>
    <!-- CountryShortCode is only mapped when Country also exists. Best practise: Map the country short code into Country and CountryShortCode. -->
    <ContactElement id="Person_CountryShortCode">Person/standardLand</ContactElement>
    <ContactElement id="Person_City">Person/standardOrt</ContactElement>
    <ContactElement id="Person_Email">Person/standardEMail</ContactElement>
    <ContactElement id="Person_Fax">Person/standardFax</ContactElement>
    <ContactElement id="Person_FirstName">Kontakt/kontaktvorname</ContactElement>
    <ContactElement id="Person_FirstName">Person/kontaktvorname</ContactElement>
    <ContactElement id="Person_Homepage">Person/standardHomepage</ContactElement>
    <ContactElement id="Person_LastName">Kontakt/kontaktname</ContactElement>
    <ContactElement id="Person_LastName">Person/kontaktname</ContactElement>
    <ContactElement id="Person_Mobile"></ContactElement>
    <ContactElement id="Person_NickName"></ContactElement>
    <ContactElement id="Person_Phone">Person/standardTelefon</ContactElement>
    <ContactElement id="Person_Position">Kontakt/stellung</ContactElement>
    <ContactElement id="Person_Position">Person/stellung</ContactElement>
    <ContactElement id="Person_PostOfficeBox" fReplace="Postfach,PostfachPostfach" fSubstringAfter="Postfach"></ContactElement>
    <ContactElement id="Person_PostOfficeBoxCity"></ContactElement>
    <ContactElement id="Person_Profession"></ContactElement>
    <ContactElement id="Person_SecondName"></ContactElement>
    <ContactElement id="Person_Street">Person/standardAdresse</ContactElement>
    <ContactElement id="Person_Title">Kontakt/titel</ContactElement>
    <ContactElement id="Person_Title">Person/titel</ContactElement>
    <ContactElement id="Person_ZipCode">Person/standardPLZ</ContactElement>
    <ContactElement id="Provider_AddressLabel">anschrift</ContactElement>
    <ContactElement id="Salutation">briefanrede</ContactElement>
    <ContactElement id="SalutationShort">anrede</ContactElement>
  </ContactMapping>
  <RequestConfiguration>
    <Envelope>
      <Header>
        <!-- ↓ Alte Konfiguration ↓ -->
        <BasicAuth>
          <Name></Name>
          <Password></Password>
        </BasicAuth>
        <!-- ↓ Neue Konfiguration ↓ -->
        <BasicAuth>
          <Token></Token>
        </BasicAuth>
      </Header>
      <Body>
        <Query>
          <Selection>
            <ocl>Adresseintrag</ocl>
            <sqlwhere>
                  aktiv = 1
                            and
                        (
                    (alias like '%{0}%') or (standardadresse like '%{0}%') or (standardPLZ like '%{0}%') or (standardOrt like '%{0}%')
                      or
                    (firma in (select bold_id from adresseintrag where (name like '%{0}%') or (alias like '%{0}%') or (standardadresse like '%{0}%') or (standardPLZ like '%{0}%') or (standardOrt like '%{0}%')))
                  )
                    </sqlwhere>
          </Selection>
          <Resultdef>
            <member>Personenkonto</member>
            <member>Alias</member>
            <member>LieferantenNr</member>
            <member>Standardadresse</member>
            <member>Stellung</member>
            <member>Zusatz</member>
            <member>StandardKanton</member>
            <member>StandardTelefon</member>
            <member>Bankverbindung</member>
            <member>StandardMobile</member>
            <member>Geburtsdatum</member>
            <member>StandardHomepage</member>
            <member>StandardLand</member>
            <member>MWSTNR</member>
            <member>StandardFax</member>
            <member>Briefanrede</member>
            <member>IsMale</member>
            <member>Grussformel</member>
            <member>StandardEMail</member>
            <member>Titel</member>
            <member>StandardOrt</member>
            <member>Name</member>
            <member>Anrede</member>
            <member>StandardPLZ</member>
            <expression>
              <alias>Sprache</alias>
              <ocl>sprache.asstring</ocl>
            </expression>
            <member>KundenNR</member>
            <expression>
              <alias>firmenname</alias>
              <ocl>
                    if self.oclistypeof(Firma) then self.oclastype(Firma).name
                    else
                    if self.oclistypeof(Kontakt) and self.oclastype(Kontakt).firma-&gt;notempty then self.oclastype(Kontakt).firma.name
                    else ''
                    endif
                    endif
                  </ocl>
            </expression>
            <expression>
              <alias>kontaktname</alias>
              <ocl>
                    if self.oclistypeof(Person) then self.oclastype(Person).name
                    else
                    if self.oclistypeof(Kontakt) then
                      if self.oclastype(Kontakt).person-&gt;notempty then self.oclastype(Kontakt).person.name
                      else self.oclastype(Kontakt).name
                      endif
                    else ''
                    endif
                    endif
                  </ocl>
            </expression>
            <expression>
              <alias>kontaktvorname</alias>
              <ocl>
                    if self.oclistypeof(Person) then self.oclastype(Person).vorname
                    else
                    if self.oclistypeof(Kontakt) then
                      if self.oclastype(Kontakt).person-&gt;notempty then self.oclastype(Kontakt).person.vorname
                      else self.oclastype(Kontakt).vorname
                      endif
                    else ''
                    endif
                    endif
                  </ocl>
            </expression>
            <member>adresstext</member>
            <expression>
              <alias>Kuerzel</alias>
              <ocl>
                    if self.oclistypeof(Kontakt) then self.oclastype(Kontakt).abteilung else '' endif
                  </ocl>
            </expression>
            <expression>
              <alias>Abteilung</alias>
              <ocl>
                    if self.oclistypeof(Kontakt) then zusatzfeldasstring('abteilung') else '' endif
                  </ocl>
            </expression>
          </Resultdef>
        </Query>
      </Body>
    </Envelope>
  </RequestConfiguration>
</AddressProvider>
